Understanding the CCUS Value Chain: ccus process insights

The global imperative to reduce carbon emissions has brought carbon capture, utilization, and storage (CCUS) technologies to the forefront of climate change mitigation strategies. Understanding the CCUS value chain is essential for grasping how this complex system functions and how it can be optimised to meet ambitious environmental targets. This article provides a detailed exploration of the CCUS process insights, breaking down each stage of the value chain and highlighting key technical and operational considerations.

The Fundamentals of the CCUS Value Chain

The CCUS value chain encompasses a series of interconnected steps that collectively enable the capture, transport, utilisation, and storage of carbon dioxide (CO2). Each stage plays a critical role in ensuring the efficiency, safety, and economic viability of the entire process.

1. Capture: The initial phase involves separating CO2 from industrial emissions or directly from the atmosphere. Technologies such as post-combustion capture, pre-combustion capture, and oxy-fuel combustion are commonly employed. The choice of technology depends on the source of CO2 and the specific industrial context.




2. Transport: Once captured, CO2 must be transported to utilisation or storage sites. Pipelines are the most common mode of transport, especially for large volumes over land. In maritime contexts, shipping CO2 in liquefied form is gaining traction, particularly for offshore storage projects.




3. Utilisation: Captured CO2 can be converted into valuable products, such as chemicals, fuels, or building materials. This stage not only helps offset costs but also contributes to a circular carbon economy.




4. Storage: The final step involves injecting CO2 into geological formations, such as depleted oil and gas fields or deep saline aquifers, where it can be securely stored for centuries.




Each of these stages requires specialised infrastructure, regulatory frameworks, and monitoring systems to ensure environmental integrity and operational safety.

High angle view of offshore CO2 storage platform in the sea

Detailed ccus process insights: Capture Technologies and Challenges

The capture phase is arguably the most technically demanding and cost-intensive part of the CCUS value chain. It requires advanced materials and processes to efficiently separate CO2 from flue gases or ambient air.

• Post-combustion capture involves scrubbing CO2 from exhaust gases after fuel combustion. Amine-based solvents are widely used, but research is ongoing into alternative solvents and solid sorbents to reduce energy consumption.




• Pre-combustion capture converts fuel into a mixture of hydrogen and CO2 before combustion. This method is often integrated into gasification plants and hydrogen production facilities.




• Oxy-fuel combustion burns fuel in pure oxygen instead of air, producing a flue gas that is mostly CO2 and water vapour, simplifying separation.




Each technology presents trade-offs in terms of energy requirements, scalability, and integration with existing industrial processes. For example, retrofitting existing power plants with capture technology can be complex and costly, whereas new-build facilities can be designed with capture in mind from the outset.

Operational challenges include managing the energy penalty associated with capture, ensuring solvent stability, and minimising emissions of other pollutants. Advances in materials science and process engineering continue to improve capture efficiency and reduce costs.

Transport and Infrastructure: Ensuring Safe and Efficient CO2 Movement

Transporting CO2 from capture sites to utilisation or storage locations is a critical link in the value chain. The choice of transport mode depends on factors such as distance, volume, geography, and regulatory environment.

• Pipelines: The most common and cost-effective method for large-scale, onshore transport. Pipelines require careful design to handle CO2 in a supercritical state, preventing corrosion and ensuring pressure stability.




• Shipping: For offshore or geographically dispersed projects, maritime transport of liquefied CO2 is increasingly viable. Ships equipped with cryogenic tanks can carry CO2 over long distances, connecting capture sites with offshore storage reservoirs.




• Trucking and Rail: These modes are generally reserved for smaller volumes or initial pilot projects due to higher costs and logistical complexity.




Infrastructure development must consider safety protocols, leak detection systems, and regulatory compliance. Coordination between multiple stakeholders, including operators, regulators, and local communities, is essential to build public trust and ensure project success.

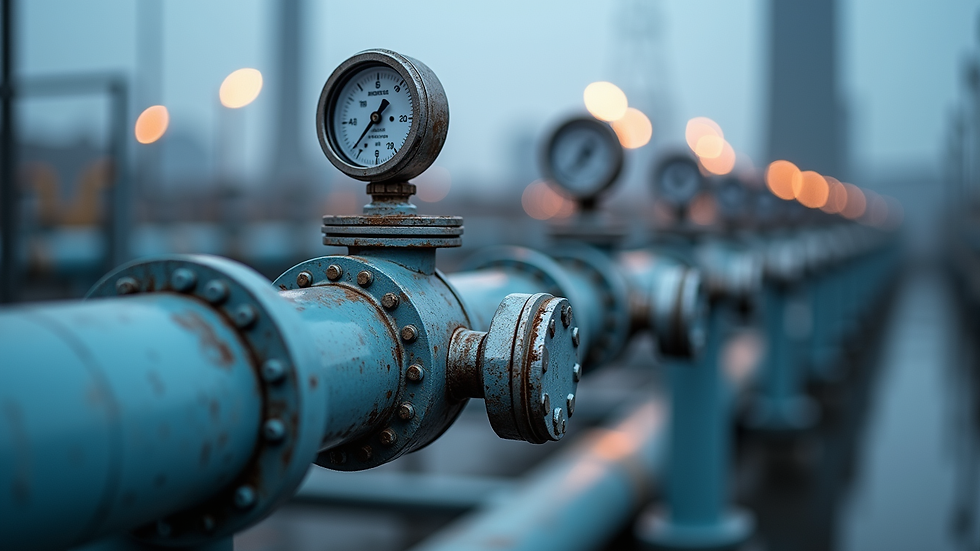

Close-up view of CO2 pipeline infrastructure with valves and gauges

Utilisation Pathways: Adding Value to Captured CO2

Utilisation of captured CO2 transforms a waste product into a resource, creating economic incentives and reducing net emissions. Several utilisation pathways are under development or commercial deployment:

• Enhanced Oil Recovery (EOR): Injecting CO2 into mature oil fields to increase extraction rates. While this extends fossil fuel production, it also enables CO2 storage.




• Chemical Production: CO2 can be converted into chemicals such as methanol, urea, and polymers. These processes often require hydrogen, which ideally should be produced from low-carbon sources.




• Building Materials: CO2 can be mineralised into concrete and aggregates, locking carbon into durable products.




• Synthetic Fuels: Combining CO2 with hydrogen to produce synthetic hydrocarbons offers a route to carbon-neutral fuels.




Each utilisation route has specific technical requirements and market dynamics. The scalability of utilisation options varies, and integration with renewable energy sources is critical to ensure overall carbon reductions.

Storage Solutions: Geological and Emerging Options

Secure and permanent storage of CO2 is the cornerstone of CCUS. Geological storage involves injecting CO2 into subsurface formations where it remains trapped by physical and chemical mechanisms.

• Depleted Oil and Gas Reservoirs: These formations have proven containment properties and existing infrastructure, making them attractive storage sites.




• Deep Saline Aquifers: These porous rock formations contain brine and offer vast storage capacity, though site characterisation is more complex.




• Basalt Formations: Emerging research shows that CO2 can mineralise rapidly in basalt, offering a potentially permanent storage solution.




Monitoring and verification technologies are essential to detect any leakage and ensure long-term containment. Regulatory frameworks mandate rigorous site selection, risk assessment, and post-injection monitoring.

Emerging storage concepts include offshore storage in subsea formations, which aligns with maritime transport strategies and expands storage options beyond onshore sites.

Strategic Implications and Future Directions

The CCUS value chain is evolving rapidly, driven by technological innovation, policy support, and market demand. Key strategic considerations include:

• Integration with Hydrogen Economy: CCUS can enable low-carbon hydrogen production, creating synergies across energy sectors.




• Cross-border Collaboration: International cooperation is vital for developing transport and storage infrastructure, especially for offshore projects.




• Cost Reduction: Scaling up CCUS deployment and improving technology efficiency are essential to reduce costs and attract investment.




• Regulatory and Public Acceptance: Transparent governance and stakeholder engagement are critical to address environmental and social concerns.




For those interested in a comprehensive ccus value chain analysis, Offshoreco2.com provides an extensive resource hub covering the latest research and developments in maritime CO2 transport and CCUS technologies.

Advancing Knowledge and Practice in CCUS

Understanding the CCUS value chain is fundamental to advancing climate goals and fostering sustainable industrial practices. By dissecting each stage - from capture through transport, utilisation, and storage - stakeholders can identify opportunities for optimisation and innovation.

Continued research, investment, and collaboration will be necessary to overcome technical challenges and scale CCUS solutions globally. As the sector matures, it will play an increasingly pivotal role in the transition to a low-carbon economy, particularly in hard-to-abate industries.

This evolving landscape demands informed decision-making and proactive engagement with emerging technologies and policies. Through shared knowledge and coordinated action, the full potential of CCUS can be realised, contributing significantly to global carbon management efforts.
